ALO 187-B

Machine: ALO 187-B
Bandwidth: 20-100mm
Band thickness: 0.4-1.6mm
Toothpitch: 0.5-14 TPI
Capacity: Max 140mm/set cycle
Voltage: 400VAC ±10% 3-phase

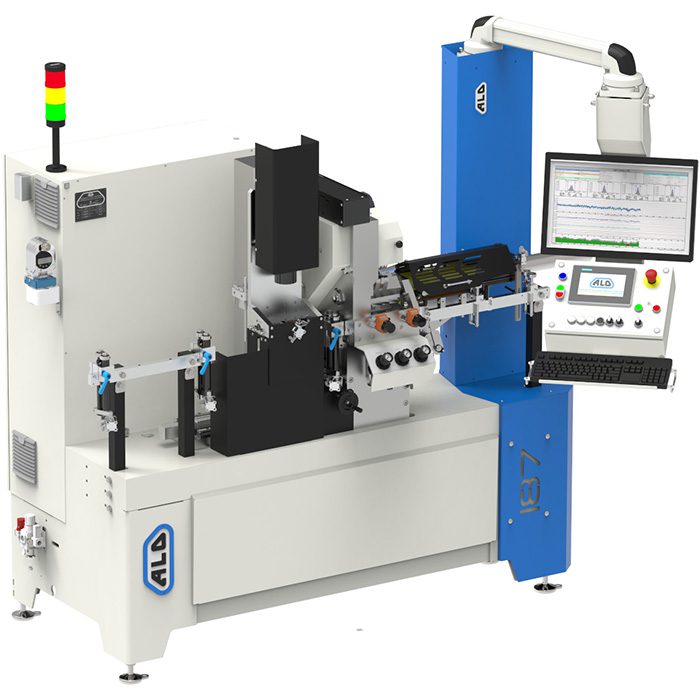

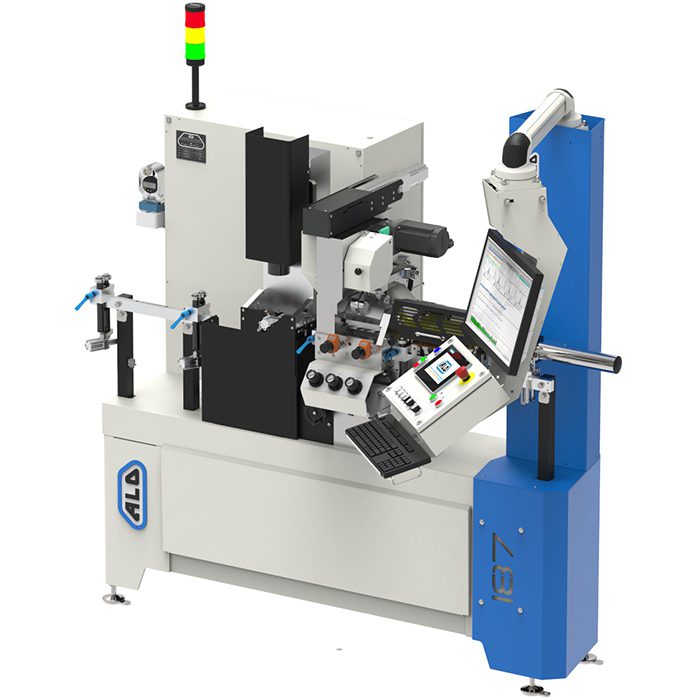

Heavy duty setting machine with programmable feed stroke with SGS camera system for band saw blades

ALO 187-B together with the SGS camera system will help you to monitor and get in full control of the setting process and quality The SGS system automatically adjust over all set and symmetry by servo motors.
New features include programmable linear servo feed pawl unit which enables varying feed lengths and set patterns. A new setting head sets all teeth, both sides, simultaneously and can thereby handle both longer set groups and harder band material.

The machine is operator friendly and easy to set up on different sizes.
A completely new design of the machine head and clamping unit with very few and durable parts ensures high availability.
