ALO 184-B

Machine: ALO 184-B
Bandwidth: 20-80mm
Band thickness: 0.4-1.6mm
Toothpitch: 0.5-14 TPI
Capacity: Max 20m/min
Voltage: 400VAC ±10% 3-phase

SKU: ALO 184-B Categories: , , , Tag:

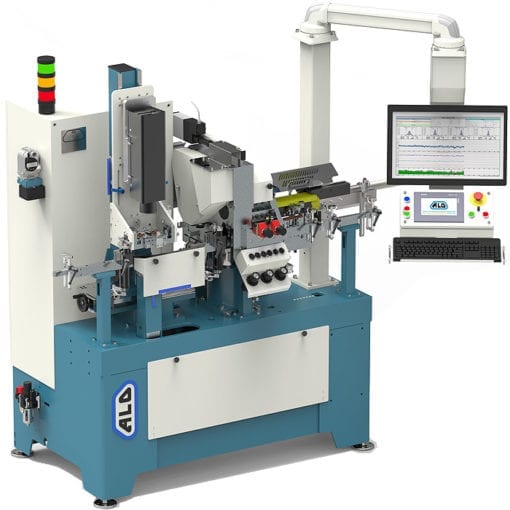

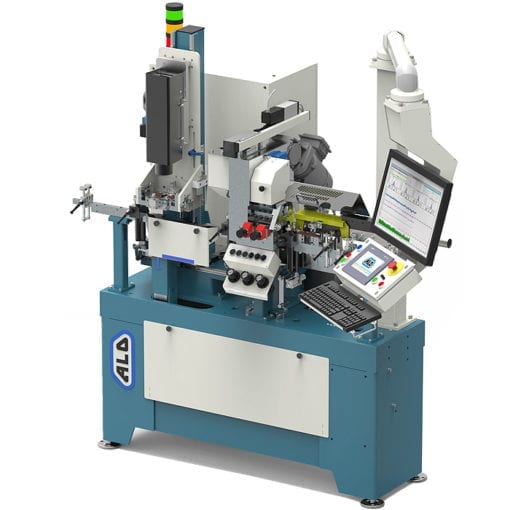

Setting machine with programmable feed stroke with SGS camera system for band saw blades

Our latest  ALO 184-B features a completely new design, combined with cutting-edge features that raise performance and safety to high levels.

184-B is equipped with SGS camera systems and automatic symmetry adjustment.
The machine is operator friendly and easy to set up on different sizes.
A novelty is pneumatically blade guide clamping which simplifies loading and unloading and ensures that bands are guided correct.

Here’s the latest features:

  • Fail-safe PLC: It is now easier to diagnose all safety circuits and allows remote support.
  • Festo Servos for Precision: Powering symmetry and camera positioning along the X and Z axes. Can also be reached via ewon for remote support.
  • Profinet in the coiler: This enables detailed diagnostics of all electrical devices and allows remote support.
  • Siemens HMI Unified Panel: Places the highest demands on industrial control and monitoring.
  • Improved Height Adjustment: A more stable height adjustment mechanism with an improved locking device, ensuring accurate and consistent performance with minimal effort.
  • Sleek, Modern Design: With an updated, clean and stylish look, our machine not only performs at the highest level but also looks great. Elevate your workspace with a machine that combines functionality with modern style.
